GRP-Cable Tray

EAN Code: 4013339952465

Smallest packaging unit:

3 m

quantity unit:

m

M

Article Description

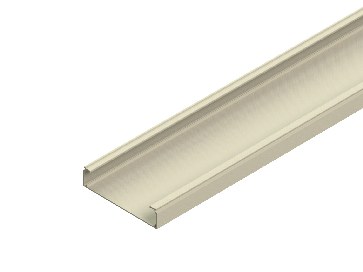

GRP Cable tray, 80x300x3000 mm, unperforated, Polyester glasfaserverstärkt, pultrudiert, RAL 7032, kieselgrau

ETIM

ETIM Keywords

Cable tray
Cable trough
Cable support system

Excl. Accessories

exclusive bolting

The splice plate KPGH 80 is not included in the scope of delivery (please order separately).

Long reference

GRP cable tray, pultruded, with unperforated side rails, without bottom perforation, mechanical strength to IEC 61537, please order proportional fastening accessories separately, halogen-free.
The splice plates KPGH 80 are not included in the scope of delivery (please order separately).
When installing the splice plates KPGH 80 an expansion distance of the cable trays of approx. 3 mm must be taken into account.
Due to the expansion of the material the following must be observed during assembly:
- The cable tray should not be screwed close to or at the joint.
- When screwing the cable tray onto the brackets, a through hole of Ø 9 mm for the FKM 6X20 E4 screws must always be made in the tray.
Article available in various resin mixtures.
Dimensions (approx. dimensions)
H x W : 80 x 300 mm
Material thickness t : 3.2 - 4.5 mm
Delivery length : 3000 mm
Usable cross-section : 21940 mm²
Material : UP-GF (glass fibre reinforced polyester)
Colour : pebble grey
RAL : 7032 (similar)

Weight

Weight per quantity unit

3,630 kg

/ m

Weight in kg per 100

363 kg

/ 100m

Physical Article Dimensions

Height

80.00 mm

Width

300 mm

Depth/length

3000 mm

Load Specifications

Note: The deflection of the cable trays was measured with a positioning of the connectors of L/5 of the fastening distance between 2 brackets. If this distance is not maintained, the deflection can increase by up to 30%.

Packing Dimension

3 meters = 1 piece

VP1-smallest packaging unit ( PU)

VP1-preferred PU

Lenght

3000 mm

Width

300 mm

Height

80.00 mm

Gross weight

11 kg

Volume

0,072 m³

Min. quantity

3.00 m

Max. Quantity

3.00 m

Tender Text

GRP cable tray, pultruded, with unperforated side rails, without bottom perforation, mechanical strength to IEC 61537, please order proportional fastening accessories separately, halogen-free.
The splice plates KPGH 80 are not included in the scope of delivery (please order separately).
When installing the splice plates KPGH 80 an expansion distance of the cable trays of approx. 3 mm must be taken into account.
Due to the expansion of the material the following must be observed during assembly:
- The cable tray should not be screwed close to or at the joint.
- When screwing the cable tray onto the brackets, a through hole of Ø 9 mm for the FKM 6X20 E4 screws must always be made in the tray.
Article available in various resin mixtures.
Dimensions (approx. dimensions)
H x W : 80 x 300 mm
Material thickness t : 3.2 - 4.5 mm
Delivery length : 3000 mm
Usable cross-section : 21940 mm²
Material : UP-GF (glass fibre reinforced polyester)
Colour : pebble grey
RAL : 7032 (similar)
NIEDAX Model No. : KP 80.300
EP Material__________ EP Wage__________
Unit price/meter

Safety & Environment

REACH Date

05.11.2025

REACH Info

Conformable

RoHS Info

Conformable

Origin & International Trade

Country of origin

FR

Customs tarif number

39259020

Classification eCl@ss

Latest Version

eClass 9.0

Latest Version/Class

27400502

Penultimate Version

eClass 8.1

Penultimate Version/Class

27400502

System overview PDF Online

SYUE-EBO-0002-B

System overview cable trays KP

Information pages, special

AINF-EBO-0001-GB-C

Cable tray systems in Glass Reinforced Polyester

AINF-EBO-0002-GB-D

Thermoset resins

Information pages, general

PICT-NX-0001-GB-N

Icons

TABE-NX-0001-GB-I

Plastic materials / Elastomer

Related items

Barrier strip

Model No.

Description

FKM 6X20 E4

Cup screw with slot, nut, washer, DIN 7093-1, M6, length =20 mm, Edelstahl, Werkstoff-Nr.: 1.4401, 1.4404, inkl. Mutter u. Scheibe

KPT 80

GRP-barrier strip for cable tray, 80x3000 mm, glass fiber reinforced polyester, pultruded, RAL 7032, pebble grey

KPT 80/M

GRP-barrier strip for cable tray, 80x3000 mm, pre-assembled, glass fiber reinforced polyester, pultruded, RAL 7032, pebble grey
